Continuous Emission Monitoring System

CEMS-ZY100 Continuous Emission Monitoring System

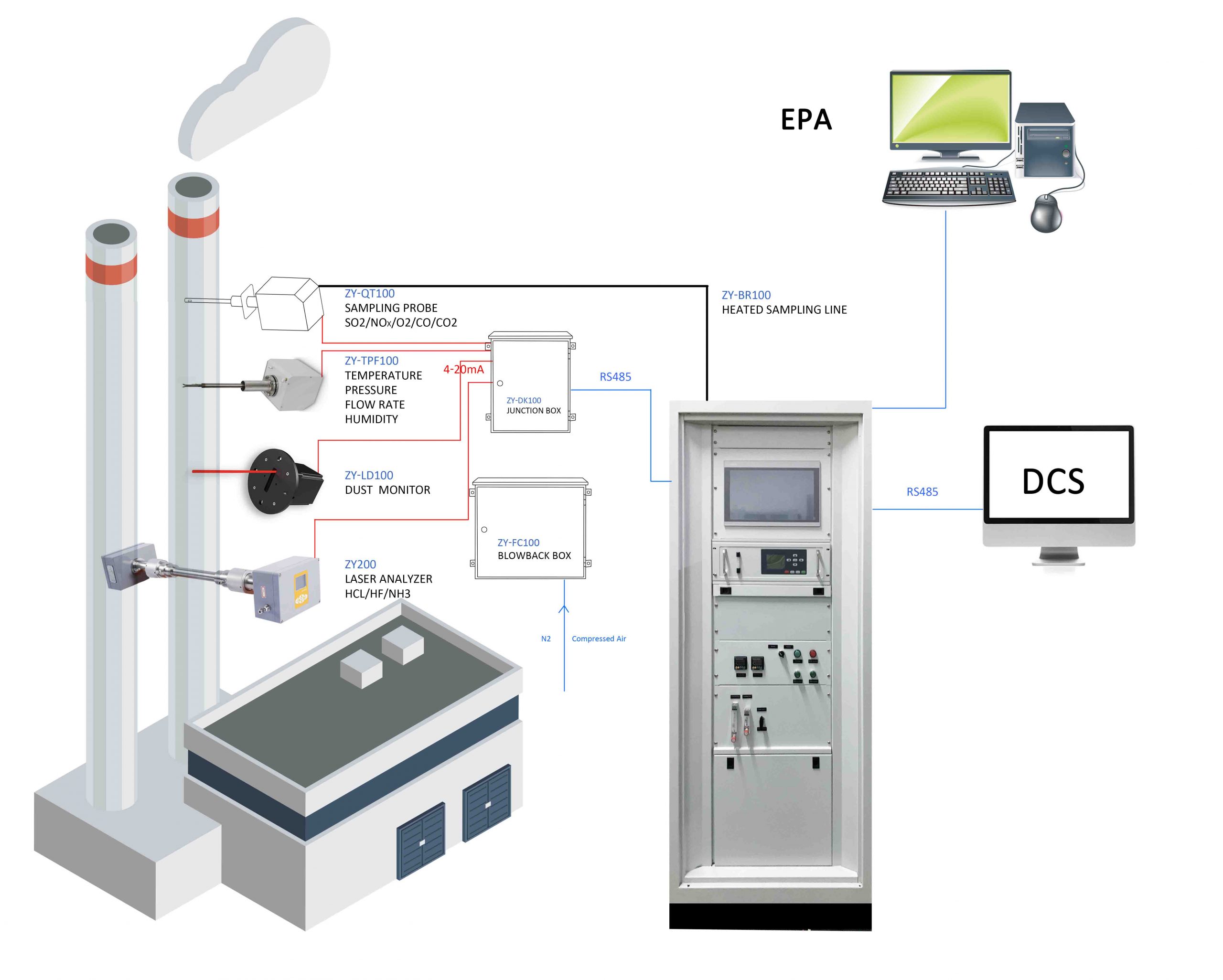

This system consists of a gaseous pollutant monitoring subsystem, a particulate matter monitoring subsystem, a flue gas parameter monitoring subsystem, and a data acquisition and processing subsystem. It can continuously monitor many related parameters such as the flow rate of dense flue gas, SO2, NOx, O2, CO, CO2, HCL, HF, NH3, flue gas pressure, and flue gas humidity.

ez@zuoyeal.com

System Characteristics

The CEMS1000 system adopts a number of original technologies, and the system mainly has the following characteristics:

◎ High Reliability

Pulsed xenon lamp light source, Ten-year lifespan.

Grating spectroscopy and array sensors, no moving parts.

Dust monitor adopts integrated design, compact structure.

◎ Convenient maintenance, low maintenance cost

The system wiring is simple and easy to install and maintain.

In the gas analyzer, the light source, gas chamber and spectrometer are connected by optical fiber, so the maintenance and replacement of each part is simple and the cost is low.

◎ High measurement accuracy

SO2 and NOx were analyzed by Differential Optical Absorption Spectroscopy (DOAS).

It can effectively solve the influence of water, dust and other factors on the measurement accuracy.

The dust meter adopts the principle of in-situ laser backscattering, with high sensitivity, fast response, built-in self calibration function, accurate measurement and good stability.
