Continuous Emission Monitoring System

VOCs-ZY700 Volatile Organic Compounds Online Monitoring system

The VOCs online monitoring system consists of a gaseous pollutant monitoring subsystem, a flue gas parameter monitoring subsystem, and a data acquisition and processing subsystem. The pretreatment unit, analysis unit, and data acquisition and processing subsystem of the gaseous pollutant monitoring subsystem are installed in Inside the cabinet, it can continuously monitor methane (CH), total hydrocarbons (THC), non-methane total hydrocarbons (NMHC), benzene series (benzene, toluene, styrene, ethylene oxide, propylene oxide) and other pollution factors

ez@zuoyeal.com

System Characteristics

The whole system has a simple structure, wide dynamic range, strong real-time performance, flexible networking, and low operating cost. At the same time, the system adopts a modular structure and is easy to combine. It can increase or decrease according to customer needs; Data system communication.

Technical characteristics

◎ Sensitivity

-Separation efficiency and signal-noise ratio enhanced by

utilizing adsorption, thermal desorption technology

-Complementary detection combined FID with PID in serial

for an optimal sensitivity

◎ Response time

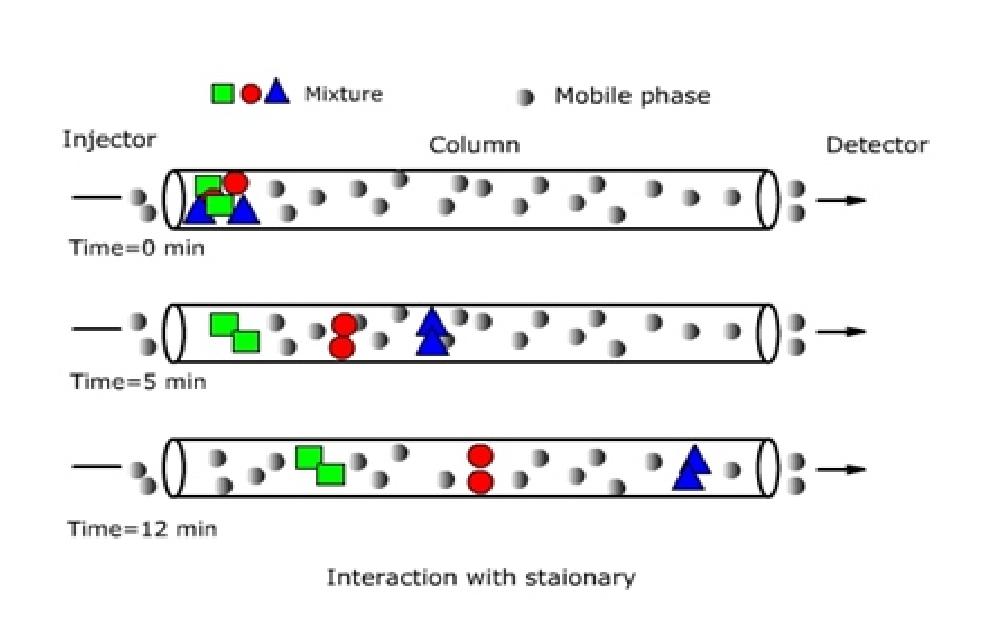

-Enable synchronous sampling and separation based on 2D

chromatography, time saving

-Fast separation and analysis through precisely temperature control

◎ Reliability

-Ignition and extinction safety automatically protected
