ez@zuoyeal.com 1. Analyzer Characteristics
The ZY-TPF300 temperature pressure flow integrated analyzer is composed of S-type pitot tube, thermal resistance PT100, pressure / differential pressure transmitter, back blowing unit, etc. it is an integrated temperature pressure flow monitor specially developed for the high dust, high temperature, high humidity and high corrosion environment of flue gas emission monitoring. It meets the requirements of relevant national standards and is suitable for the real-time continuous measurement of smoke flow rate, pressure, temperature and flow by the continuous smoke emission monitoring system (CEMS).
2. Technical Parameters
| Project | Indicators |
| Measurement principle | S-type pitot tube differential Pressure principle |
| Measuring range | Velocity: (0~40)m/s
Differential Pressure: (0~1000)Pa Temperature: (0～300~500)℃ Pressure: (-10～+10)KPa |
| Accuracy | Velocity≤±3% F.S
Pressure≤±3% F.S Temperature≤±3℃ |
| Response time | ≤1s（T90） |
| Flue gas temperature range | -40℃～500℃ |
| Back blowing zero adjustment | Manual zero & Automatic zero |
| Communication Interface | 4 channels 4-20mA analog output/RS485 Optional |
| Installation method | Probe type, flange DN50 installation |
| power requirements | AC220V, 50Hz, 50W |
| Operating Temperature | Analyzer part: -20℃～55℃ |
| Dimensions | Pitot tube: 0.6m, 1m, 1.2m, 1.5m (regular size, other sizes can be customized) |
| Pitot tube material | 304,316L,PTFE |
| Analyzer weight | 15kg |
3. Product Features
3.1 Technical features
◎ High precision differential pressure sensors to achieve 1.0m/s low flow velocity;
◎ LCD display operation unit, providing a good interpersonal interaction interface;
◎ Automatic blowback, Automatic calibration, Automatic zero calibration;
◎ Blowback zero time, Automatic zero time, Pitot tube coefficient adjustable;
◎ Pitot tubes have high corrosion resistance in high temperature, high humidity, and high dust;
3.2 Product advantages

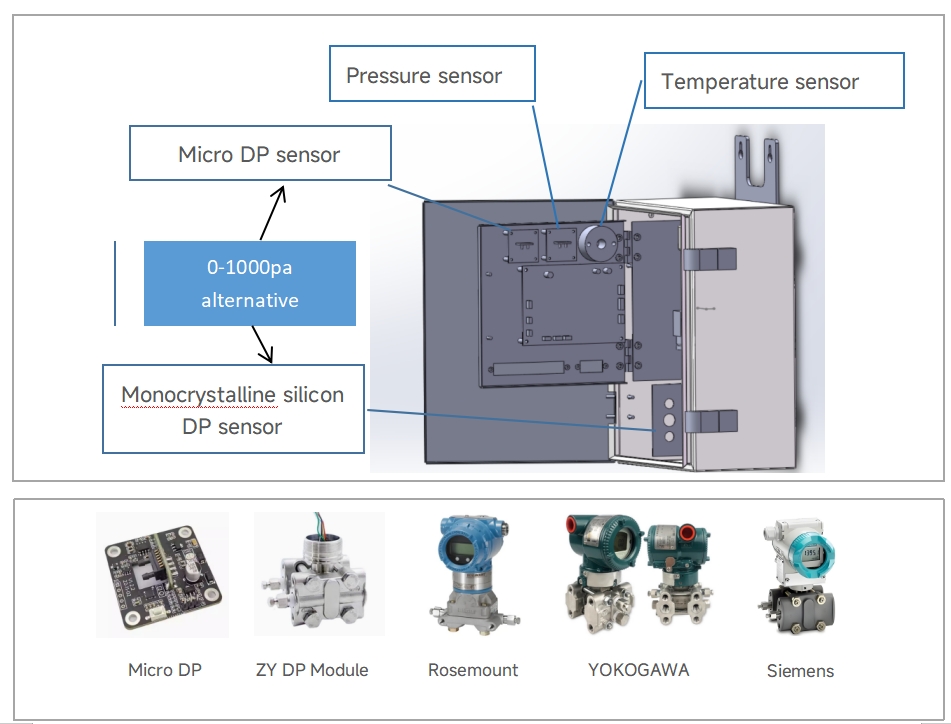

3.2.1 Flexible Differential Pressure (DP) Sensor Selection,Easy to maintain
Compared to micro DP sensors, monocrystalline silicon DP sensors have better quality and service life.
TPF300 is compatible with micro DP and imported brand DP sensors.

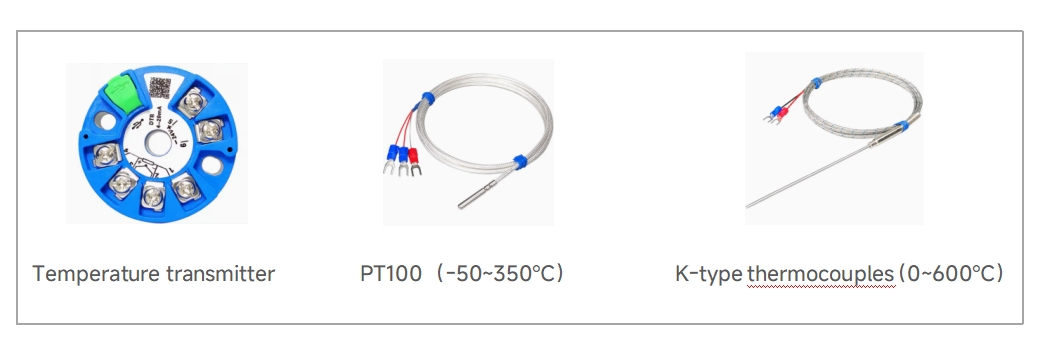

3.2.2 Split type temperature transmitter
Using a temperature transmitter, it can support PT100, K-type thermocouples, and adapt to different temperature conditions

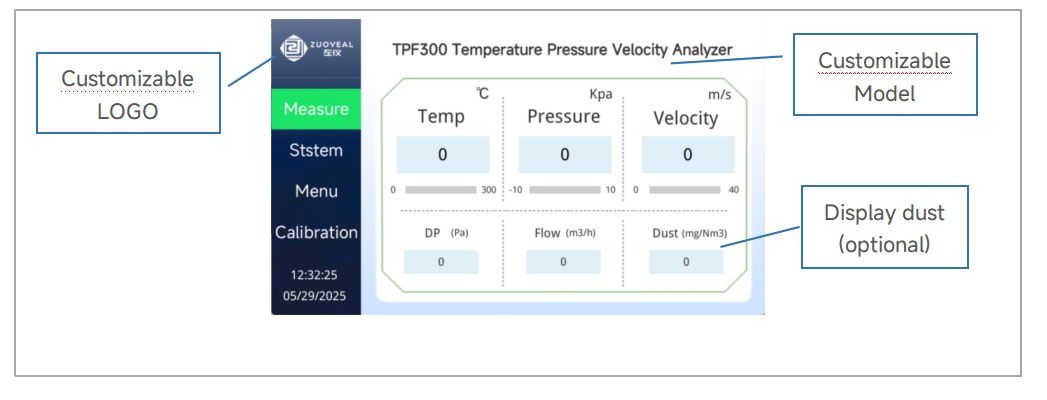

3.2.3 Customized UI, compatible with dust signals
Can be connected to the Dust current signal. Used together with LD100 dust analyzer.
Use a channel RS485 signals to output to the CEMS system
