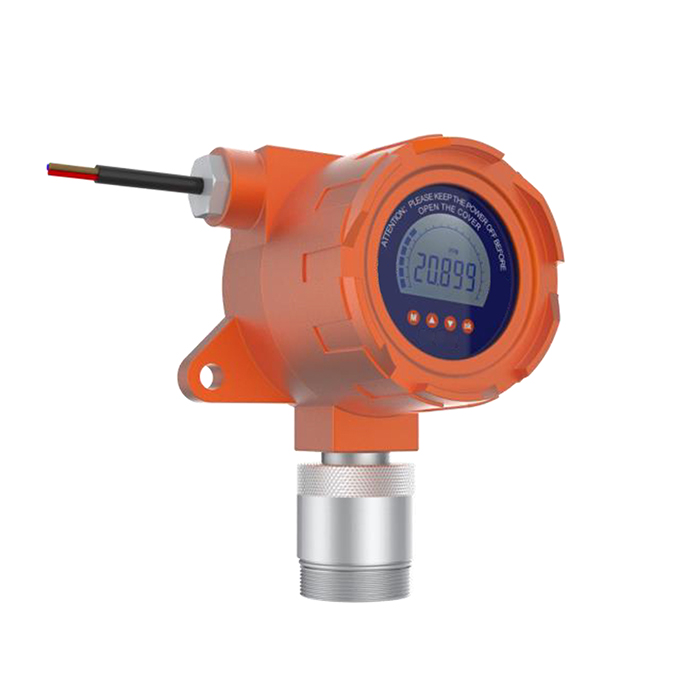

ez@zuoyeal.com The detector working with gas controller are widely used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists, effectively protect personnel and plant from flammable, toxic and oxygen hazards.
| Technical Specifications | ||||||||||
| Sensor Cell: | UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors | |||||||||
| Lifetime of detector: | 2 – 5 years | |||||||||
| Sample mode | Diffusion/extract | |||||||||
| Output signals: | 4-20mA/RS485 | |||||||||
| Operating voltage: | 24V DC | |||||||||
| Display | 4 digital LED readout display | |||||||||
| Ambient temperature: | – 20 ° C ~ + 50 ° C | |||||||||
| Relative humidity: | 15~90%RH(non condensation) | |||||||||
| Detection precision: | ±5%FS | |||||||||
| Net Weight: | ZY1020-D: 2.5kg ZY1020- N:2 kg | |||||||||
| Explosion-proof grade: | Exd II CT6 | |||||||||
| Gas Type | Detection Range | Response Time | Resolution | Alarm Values | ||||||
| C6H6 | 0-100 ppm | T90≤50s | 0.1 ppm | 10ppm/20ppm | ||||||
| C7H8 | 0-100 ppm | T90≤50s | 0.1 ppm | 10ppm/20ppm | ||||||
| C8H8 | 0-100 ppm | T90≤50s | 0.1 ppm | 10ppm/20ppm | ||||||
| C2H4O | 0-100 ppm | T90≤50s | 0.1 ppm | 10ppm/20ppm | ||||||
| C3H6O | 0-100 ppm | T90≤50s | 0.1 ppm | 10ppm/20ppm | ||||||
| TVOC | 0-100 ppm | T90≤60s | 0.1 ppm | 10ppm/20ppm | ||||||
